LDPE TWO LAYER CO EXTRUSION BLOWN FILM MACHINE

LDPE TWO LAYER CO EXTRUSION BLOWN FILM MACHINE

We provide various kinds of high efficient LDPE Two Layer Blown Film Co Extrusion Machine are available for your choice. These machines widely used to extrusion different material, such as HDPE, LLDPE and PP, with output from 135kg/h to 350kg/h.
LDPE TWO LAYER CO EXTRUSION BLOWN FILM MACHINE 　 BACK
  • Specification
  • Video
  • Photograph
  • Device
MODEL   KS-CFLL50 KS-CFLL55 KS-CFLL65 KS-CFLL75
FEATURE MATERIAL TO BE USED   LDPE LLDPE HDPE EVA PP
MAX. FILM WIDTH   800 mm   1300 mm   1600 mm   2000 mm
THICKNESS OF FILM   0.02~0.25 m/m
MAX. EXTRUSION OUTPUT   135 kg/hr   200 kg/hr   280 kg/hr   350 kg/hr
EXTRUDER SCREW DIA.   50 mm × 2   55 mm × 2   65 mm × 2   75 mm × 2
SCREW L/D   30 : 1   30 : 1   30 : 1   30 : 1
SCREW / CYLINDER MATERIAL   SACM 645 STEEL WITH HARD WITH NITROGEN TREATMENT, HARDNESS 75 OR OVER
CYLINDER COOLING   ½ HP × 4   ½ HP × 6   ½ HP × 6   ½ HP × 8
DRIVING MOTOR   25 HP × 2   40 HP × 2   50 HP × 2   75 HP × 2
HEATER CAPACITY   30 kw   35 kw   42 kw   55 kw
DIES (mm)   150/200 ø   250/300 ø   300/350 ø   400/450 ø
TEMPERATURE CONTROL   12 ZONES   14 ZONES   15 ZONES   16 ZONES
COOLING EQUIP   5 HP   7½ HP   10 HP   15 HP
TAKE-UP UNIT TYPE   FIXED TYPE / OSCILLATING TYPE
PINCH ROLLER (mm)   165 ø × 900L   165 ø × 1400L   165 ø × 1700L   215 ø × 2100L
TAKE-UP MOTOR   1 HP   2 HP   2 HP   3 HP
TAKE-UP SPEED (m/min)   6 ~ 60   6 ~ 60   6 ~ 60   6 ~ 60
SUB-PINCH ROLLER (mm)   100 ø × 900L   140 ø × 1400L   140 ø × 1700L   140 ø × 2100L
GUIDE MOTOR   30 kg/cm   50 kg/cm   50 kg/cm   50 kg/cm
WINDING UNIT FWC TYPE   ONE STATION SURFACE WINDER WITH AUTOMATIC BOBIN CHANGE
EFFECTIVE WIDTH   800 mm   1300 mm   1600 mm   2000 mm
DIA. OF FILM WOUND-UP ROLL   800 mm   800 mm   800 mm   800 mm
WINDER MOTOR   1 HP   2 HP   2 HP   3 HP
DIMENSION (L×W×H) (M)   5.5×3.3×6.0   6.5×4.1×8.0   7.5×4.6×9.0   8.5×6.0×1.0
OPTIONAL DEVICE
Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with
Automatic Cooling Ring 		PIB Pump System (For LDPE/LLDPE)
*Specifications are subject to change without notice for improvement.
MODEL:
KS-CFLL50
KS-CFLL55
KS-CFLL65 Video
KS-CFLL75

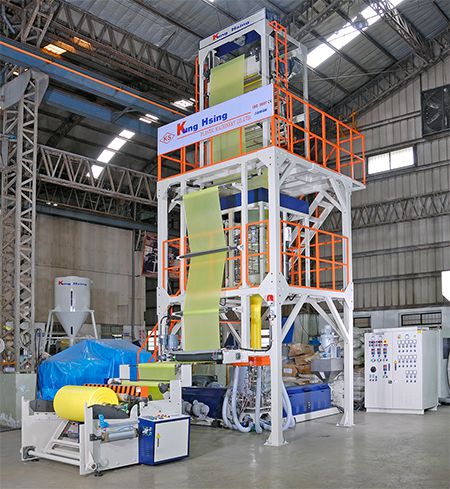

KS-CFLL65
EQUIPPED AUTOMATIC SURFACE TYPE SINGLE WINDER

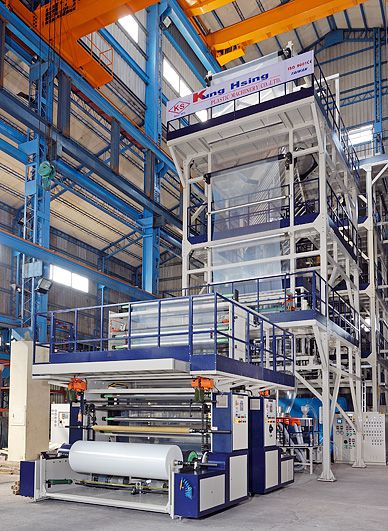

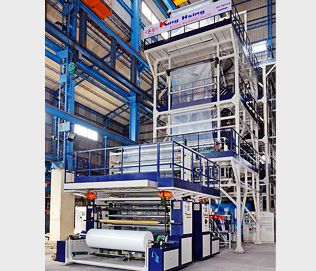

KS-CFLL65
EQUIPPED WITH HORIZONTAL OSCILLATING TAKE UP UNIT, AND FWC BACK TO BACK AUTOMATIC SURFACE TYPE WINDER

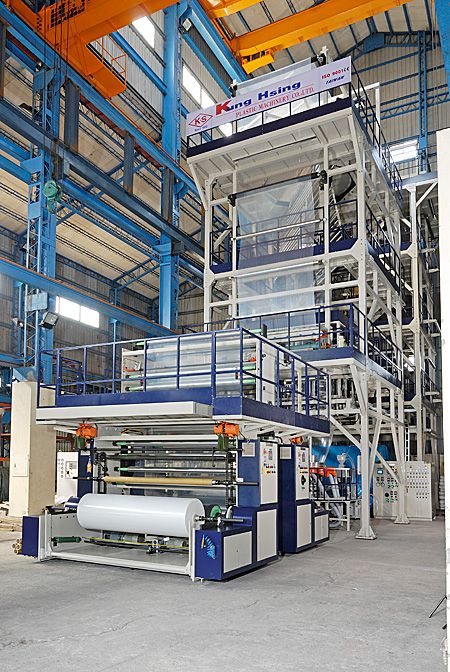

KS-CFLL85
EQUIPPED WITH HORIZONTAL OSCILLATING TAKE UP UNIT, AND FWCS BACK TO BACK AUTOMATIC SURFACE TYPE WINDER
