HDPE SINGLE HEAD TYPE SUPER HIGH SPEED BLOWN FILM LINE

HDPE SINGLE HEAD TYPE SUPER HIGH SPEED BLOWN FILM LINE

HDPE SINGLE HEAD TYPE SUPER HIGH SPEED BLOWN FILM LINE 　 BACK
  • Specification
  • Video
  • Photograph
  • Device
MODEL   KS-FE45 KS-FE50 KS-FE55 KSFE65
FEATURE MATERIAL TO BE USED   HDPE
MAX.FILM WIDTH   600mm   700mm   850mm   1100mm
THICKNESS OF FILM   0.008~0.08 m/m
MAX.EXTRUSION OUTPUT   75 kg/hr   90 kg/hr   135 kg/hr   165 kg/hr
EXTRUDER SCREW DIA.   45 mm   50 mm   55 mm   65 mm
SCREW L/D   30:1   30:1   30:1   30:1
SCREW/CYLINDER MATERIAL   SACM-645 STEEL WITH HARD WITH NITROGEN TREATMENT
CYLINDER COOLING   1/2 HPx1   1/4,1/2 HPx1   1/2 HPx3   1/2 HPx3
DRIVING MOTOR   30 HP   40 HP   50 HP   75 HP
HEATER CAPACITY   14 kw   19 kw   20 kw   27 kw
DIES (mm)   60~75Ø   70~100Ø   90~120Ø   120~150Ø
TEMPERATURE CONTROL   6 ZONES   6 ZONES   7 ZONES   7 ZONES
COOLING EQUIP   5 HP   5 HP   7 1/2 HP   7 1/2 HP
TAKE-UP UNIT TYPE   HEIGHT ADJUSTABLE
PINCH ROLLER (mm)   165Øx650L   165Øx750L   165Øx900L   165Øx1200L
TAKE-UP MOTOR   1/2 HP   1 HP   1 HP   2 HP
TAKE-UP SPEED (m/min)   12~120   12~120   12~120   12~120
SUB-PINCH ROLLER (mm)   100Øx650L   100Øx750L   100Øx900L   100Øx1200L
GUIDE MOTOR   15 kg/cm   15 kg/cm   20 kg/cm   30 kg/cm
WINDING UNIT FW TYPE   ONE STATION AUTOMATIC SURFACE TYPE WINDER x 1
EFFECTIVE WIDTH   600 mm   700 mm   850 mm   1100 mm
DIA. OF FILM WOUND-UP ROLL   1000 mm   1000 mm   1000 mm   1000 mm
WINDER MOTOR   1 HP   1 HP   1 HP   2 HP
DIMENSION (LxWxH)(M)   4.9x2.3x4.3   5x2.4X4.8   6x2.5x5.7   6.3x2.8x7
OPTIONAL DEVICE
Gravimetric Dosing Unit Oscillating Take Up Unit
IBC (Internal Bubble Cooing Computer Control System) Line Speed Synchronized with Computer Control
Thickness Measurement Two Stations Surface Winder
Thickness Controller Chiller
Automatic Hopper Loader Heat Slitting Device
Film Surface Treater EPC (Edge Position Control)
Pressure Gauge Electronic Tension Control
Rotary Die Crane for Die and Air Shaft
Automatic Gauge Control with
Automatic Cooling Ring 		PIB Pump System (For LDPE/LLDPE)
*Specifications are subject to change without notice for improvement.
MODEL:
KS-EF45
KS-FE50 Video Video
KS-FE55
KS-FE65 Video

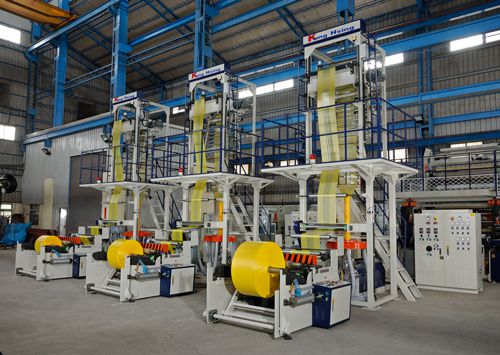

KS-FE45

KS-FE50
ROTARY DIE, ELECTRONIC TENSION CONTROL, FILM SURFACE TREATER, EDGE POSITION CONTROL,
GAIN-IN-WEIGHT GRAVIMETRIC BATCH BLENDER (GERMANY MADE)

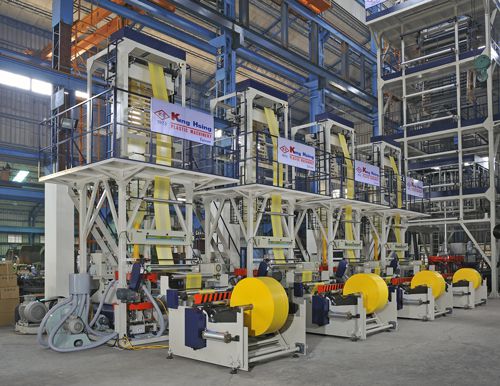

KS-FE55

KS-FE65

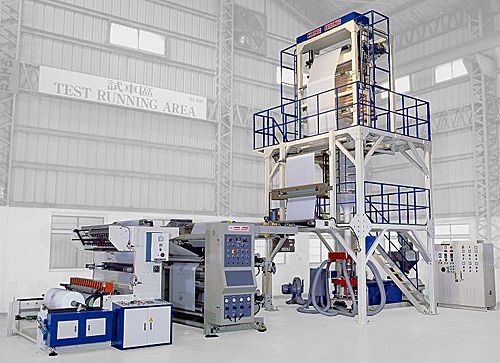

TWO COLOR IN-LINE PRINTING MACHINE
HEAT SLITING DEVICE, ELECTRONIC TENSION CONTROL, FILM SURFACE TREATER,
EDGE POSITION CONTROL, ROTARY DIE
