KS-DX SERIES PLASTIC PELLET RECYCLING MACHINE WITH ONE STAGE DIE FACE CUTTER WATER COOLING
We can provide different model of plastic pellet recyling machine, such as KS-DX65, KS-DX85, KS-DX100, KS-DX120 and KS-DX150, differentiate with specification. These machines are specially designed and developed according to the customers' requirement to produce all kinds of pellets(like hdpe pellets, ldpe pellets, pp pellets) continuously and periodically. The extrusion output is up to 180kg/h—750kg/h depending on the requirements of customers.
- Specification
- Video
- Photograph
- Device
| MODEL |
|
KS-DX65 |
|
KS-DX85 |
|
KS-DX100 |
|
KS-DX120 |
|
KS-DX150 | |
| FEATURE | MATERIAL TO BE USED | HDPE, LDPE, LLDPE, PP (PRODUCTION OUTPUT IS ACCORDING TO MATERIAL) | |||||||||
| MAX. EXTRUSION OUT PUT | 180 kg/hr | 300 kg/hr | 380 kg/hr | 470 kg/hr | 750 kg/hr | ||||||
|
FIRST EXTRUDER |
SCREW DIA. (m/m) | 65ø | 85ø | 100ø | 120ø | 150ø | |||||
| SCREW L/D | 37:1 | ||||||||||
| CYLINDER COOLING BLOWER | 1/2 HPx4 | 1/2 HPx5 | 1/2 HPx6 | 1/2 HPx6 | 1/2 HPx7 | ||||||
| DRIVING MOTOR | 40 HP | 75 HP | 100 HP | 150 HP | 200 HP | ||||||
| HEATER CAPACITY | 35 KW | 45 KW | 60 KW | 75 KW | 90 KW | ||||||
| SCREEN CHANGER | HYDRAULIC TYPE | ||||||||||
| TEMPERATURE CONTROL (points) | 5 | 7 | 8 | 9 | 11 | ||||||
| DIE | TYPE | ROUND TYPE | |||||||||
| NUMBER OF EXTRUDIED STRIPS | MULTI HOLES | ||||||||||
| CUTTING & COOLING EQUIP | CUTTING DEVICE | DIE FACE CUTTER | |||||||||
| DRIVING MOTOR | 2 HP | 2 HP | 2 HP | 3 HP | 3 HP | ||||||
| COOLING BLOWER | WATER RING (MADE OF STAINLESS STELL) | ||||||||||
| DRYING DEVICE | TYPE | STAINLESS STEEL CENTRIFUGE DRYER | |||||||||
| DRIVING MOTOR | 3 HP | 3 HP | 3 HP | 5 HP | 7 1/2 HP | ||||||
| COLLECTING TANK | CONVEYOR | 3 HP | 3 HP | 3 HP | 5 HP | 7 1/2 HP | |||||
| CYCLONE | 1 SET | ||||||||||
| SCREW TYPE SIDE FORCE FEEDING DEVICE | SCREW MOTOR | ||||||||||
| MIXER MOTOR | |||||||||||
| WASTE COLLECTING STORAGE (kgs) | |||||||||||
| SECONDARY EXTRUDER | SCREW DIA.(m/m) | 65ø | 85ø | 100ø | 120ø | 150ø | |||||
| SCREW L/D | 12:1 | ||||||||||
| CYLINDER COOLING BLOWER | 1/2 HPx2 | 1/2 HPx2 | 1/2 HPx4 | 1/2 HPx5 | 1/2 HPx7 | ||||||
| DRIVING MOTOR | 20 HP | 25 HP | 30 HP | 40 HP | 60 HP | ||||||
| HEATER CAPACITY | 20 KW | 25 KW | 30 KW | 38 KW | 45 KW | ||||||
| SCREEN CHANGER | HYDRAULIC TYPE | ||||||||||
| TEMPERATURE CONTROL (points) | 4 | 5 | 5 | 6 | 7 | ||||||
| OPTIONAL DEVICE | SPIRAL TYPE FEEDING DEVICE FOR FILM SCRAP PROCESSING, WASTE STORAGE, CATERPILLAR TYPE AUTOMATIC CONVEYOR, CRUSHER, VACUUM SYSTEM FOR VENT (DEGASSING SYSTEM), VIBRATING SYSTEM, AGGLOMERATING MACHINE, METAL DETECTOR | ||||||||||

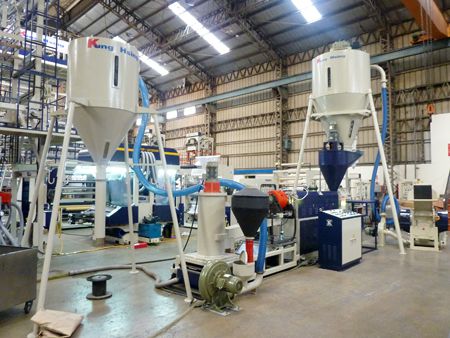

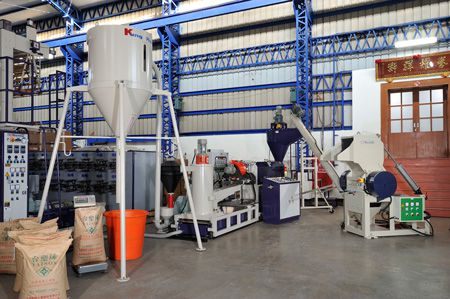

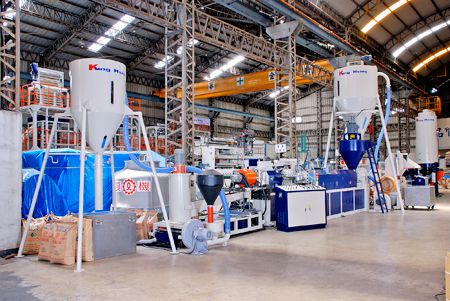

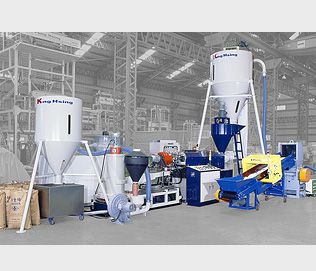

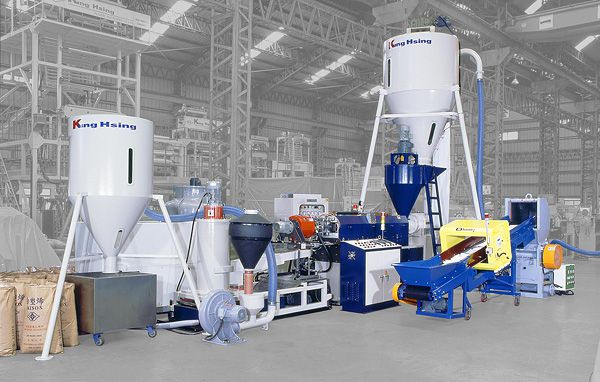

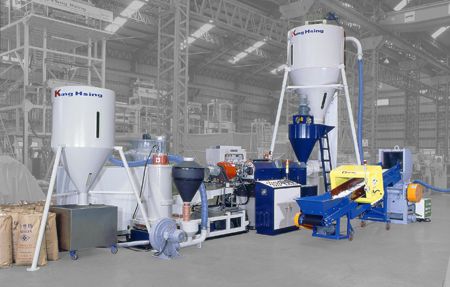

MODEL:
| KS-DX65 | |
| KS-DX85 | |
| KS-DX100 | |
| KS-DX120 | |
| KS-DX150 |
KS-DX55
KS-DX65
.jpg)
KS-DX65
KS-DX85
.jpg)
