產品介紹
三層複合吹袋機
● Φ250毫米模 : 生產出450公斤 / 小時● 連續式失重重量進料機(德國製)
● 自動異型厚度控制(自動空氣環)(空氣環高度可調、高效冷卻及產出率高)
● IBC電腦控制系統(美國製)
● 360度振盪軌測量異型厚度(德國製)
● 寬度測量器(德國製)
● 水平振盪引取裝置
● 背對背自動表面捲取機
- 規格
- 影片
- 相簿
- 設備
| 型號 | KS-CFLL50+55T |
|
KS-CFLL55+65T |
|
KS-CFLL65+75T |
|
KS-CFLL75+85T | ||
| 功能 | 用料 | LDPE LLPDPE HDPE EVA PP NYLON (CUSTOMRISED, PLEASE ADVISE MATERIAL) | |||||||
| 最大薄膜寬度 | 1100 mm | 1500 mm | 1800 mm | 2400 mm | |||||
| 膜厚度 | 0.02~0.25 m/m | ||||||||
| 最大擠出產量 | 235 kg/hr | 350 kg/hr | 450 kg/hr | 600 kg/hr | |||||
| 押出機 | 螺杆直徑 |
50 mm × 2 55 mm × 1 |
55 mm × 2 65 mm × 1 |
65 mm × 2 75 mm × 1 |
75 mm × 2 85 mm × 1 |
||||
| 螺杆長徑 | 30 : 1 | 30 : 1 | 30 : 1 | 30 : 1 | |||||
| 螺絲/氣缸材料 | SACM-645 硬化氮處理鋼, 硬度 75(以上) | ||||||||
| 汽缸冷卻 | ½ HP × 7 | ½ HP × 9 | ½ HP × 10 | ½ HP × 12 | |||||
| 驅動馬達 |
25 HP × 2 40 HP × 1 |
40 HP × 2 50 HP × 1 |
50 HP × 2 75 HP × 1 |
75 HP × 2 100 HP × 1 |
|||||
| 加熱容量 | 35 kw | 45 kw | 60 kw | 75 kw | |||||
| 模具 (mm) | 200/250 ø | 300/350 ø | 350/400 ø | 450/500 ø | |||||
| 溫度控制 | 17 point | 19 point | 22 point | 22 point | |||||
| 冷卻設備 | 7½ HP | 10 HP | 15 HP | 20 HP | |||||
| 引導裝置 | 類型 | 固定/ 振盪類型 | |||||||
| 夾送輥 (mm) | 165 ø × 1200L | 165 ø × 1600L | 215 ø × 1900L | 215 ø × 2500L | |||||
| 捲取馬達 | 2 HP | 2 HP | 3 HP | 3 HP | |||||
| 捲取速度 (m/min) | 6 ~ 60 | 6 ~ 60 | 6 ~ 60 | 6 ~ 60 | |||||
| 第二夾送輥 (mm) | 100 ø × 1200L | 140 ø × 1600L | 140 ø × 1900L | 140 ø × 2500L | |||||
| 導引馬達 | 30 kg/cm | 50 kg/cm | 50 kg/cm | 50 kg/cm | |||||
| 捲曲裝置 | FWC 型 | 自動線軸更換單站表面捲線機 | |||||||
| 有效寬度 | 1100 mm | 1500 mm | 1800 mm | 2400 mm | |||||
| 薄膜捲取輥直徑 | 800 mm | 800 mm | 800 mm | 800 mm | |||||
| 捲取機馬達 | 2 HP | 2 HP | 3 HP | 3 HP | |||||
| 尺寸 (L×W×H) (M) | 7.0×4.8×8.0 | 8.0×5.3×9.0 | 10×6.2×10 | 12×7×12 | |||||
| 增選設備 | 重量式進料機、厚度測量、寬度控制器、(IBC)電腦控制內部冷卻系統、電腦同步線速控制。自動料斗裝載機、膜表面處理機、壓力錶、旋轉模具、雙站表面捲線機、震盪引取設備、冷卻機、熱分條設備、邊緣位置控制、電子張力控制、PIB 泵系統、起重機模具、風井、五層共擠模具 | ||||||||
型號:
| KS-CFLL50+55T |
|
| KS-CFLL65+75T |
|
| KS-CFLL75+85T |
|
| 2010K-Show |
|
KS-CFLL45+50T
-
GRAVIMETRIC BATCH BLENDER (TSM,IRELAND)
-
FOR FFS FILM AND HEAVY DUTY BAG
KS-CFLL50+55T
KS-CFLL55+65T
-
DOTECO BATCH BLENDER (ITALY MADE)
-
IBC COMPUTER CONTROL SYSTEM (U.S.A. MADE)
-

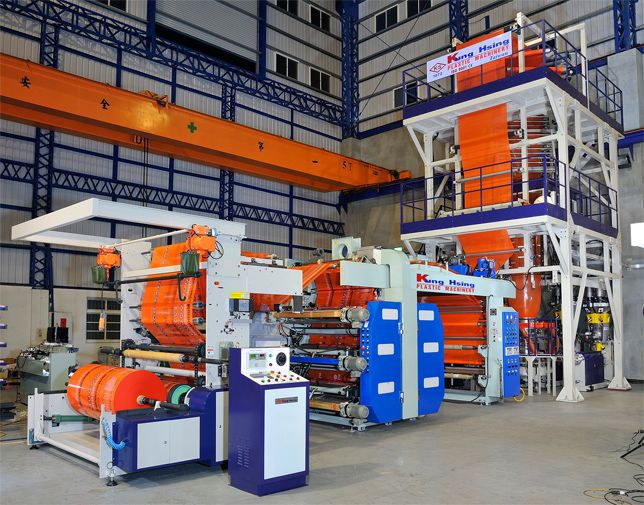

SIX COLORS FLEXOGRAPHIC PRINTING MACHINE (IN-LINE)
KS-CFLL55+65T
KS-CFLL55+65T
KS-CFLL55+65T
KS-CFLL55+65T
KS-CFLL55+65T
KS-CFLL55+65T
THREE LAYER CO-EXTRUSION BLOWN FILM LINE EQUIPPED WITH GAIN IN WIGHT DOSING UNIT (ITALY MADE), HORIZONTAL OSCILLATING TAKE UP UNIT, IBC COMPUTER SYSTEM (U.S.A. MADE), AND FWC BACK TO BACK AUTOMATIC SURFACE TYPE WINDER.
KS-CFLL55+75T
-
GRAVIMETRIC BATCH BLENDER (IRELAND MADE)
-
IBC COMPUTER CONTROL SYSTEM (U.S.A. MADE)
KS-CFLL65+75T
KS-CFLL65+75T
-

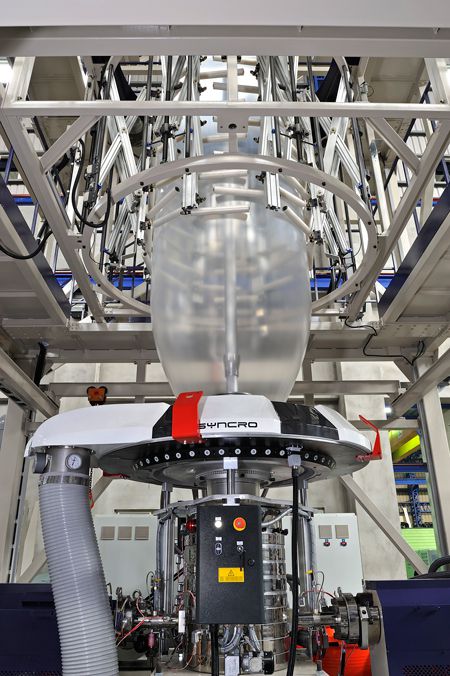

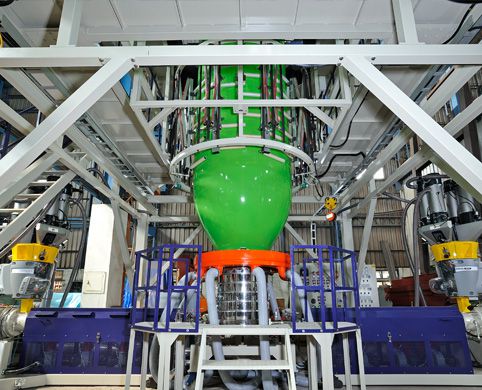

HEIGHT ADJUSTABLE AUTOMATIC THICKNESS PROFILE CONTROLLER AIR RING (GERMANY MADE) THICKNESS VARIATION: ±2%~3%
-
LOSS IN WEIGHT GRAVIMETRIC DOSING UNIT (GERMANY MADE)
-
IBC COMPUTER SYSTEM (U.S.A. MADE)
KS-CFLL65+75T
KS-CFLL65+75T
- GAIN IN WEIDTH DOSING UNIT (ITALY MADE)
-
IBC COMPUTER SYSTER WITH WIDTH CONTROLLER (USA MADE)
-

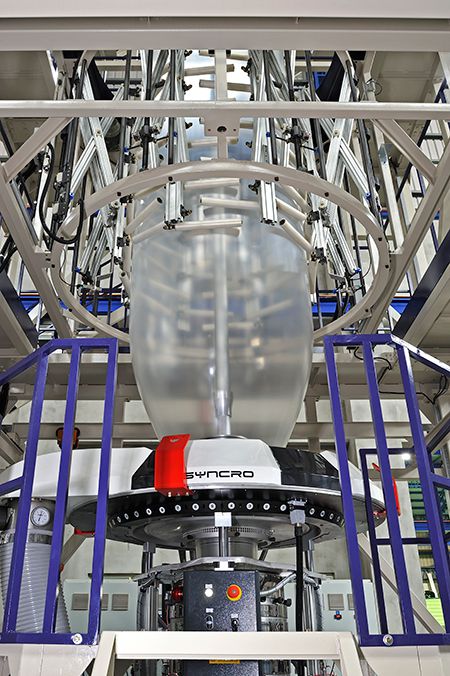

HEIGHT ADJUSTABLE AUTO THICKNESS PROFILE CONTROLLER AIR RING (GERMANY MADE)
KS-CFLL75+85T
EQUIPPED WITH GAIN IN WEIGHT DOSING UNIT (ITALY MADE), IBC COMPUTER SYSTEM (U.S.A MADE), HORIZONTAL OSCILLATING TAKE UP UNIT, AND FWC BACK TO BACK AUTOMATIC SURFACE TYPE WINDER
KS-CFLL75+85T with secondary gusset device
KS-CFLL75+85T
KS-CFLL75+85T
.jpg)
KS-CFLL50+65T
KS-CFLL50+65T
